London’s Film Studios

…that have been used to make TV

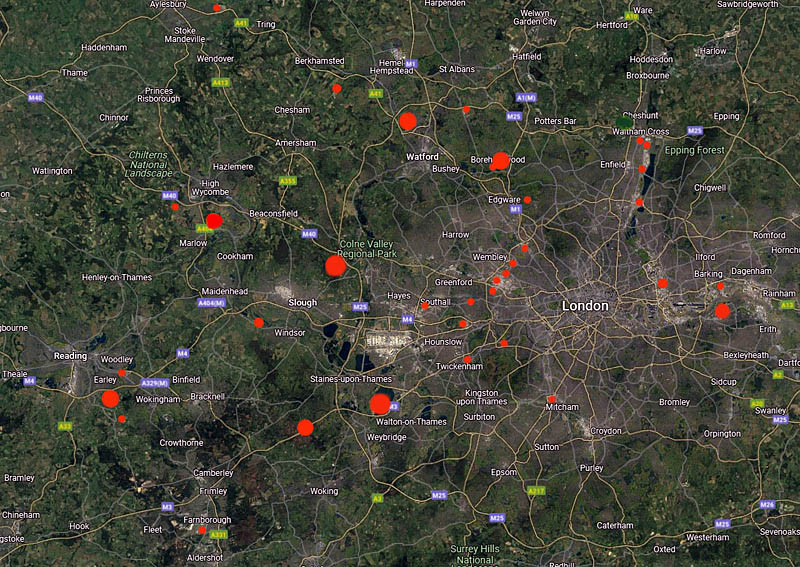

The distribution of film studios around London.  The centre is on Pinewood so crew members who live near there can get to most studios within an hour’s drive.  Interesting to note the string of studios around the A406 North Circular.   Marlow and Sunset Waltham Cross are indicated in yellow.



There is often some confusion about the difference between a film studio and a television studio.  For the purposes of this website, a TV studio is assumed to have technical facilities including control rooms for production, sound and lighting.  They will also have dressing rooms, make-up rooms and usually a production office and green room.  They should also have a resin floor enabling camera peds to run smoothly over it and a grid enabling lights to be quickly rigged and derigged.  Sadly, some studios these days do not have fully equipped grids but expect each show to rig trussing, lights and dimmers.

A ‘film studio’ is either a company producing movies (Disney, Universal etc) or a collection of buildings with sound stages and workshops (Pinewood, Shepperton etc.)  The room in which the filming takes place is not a film studio, it is a sound stage.

A sound stage at a film studio is a far more basic facility than a TV studio.  No technical facilities are provided but hopefully it will have a grid with easy access enabling rigging of lights and scenery to be carried out.  Not all have this, however, and lights have to be rigged on ground-support truss or on trussing that has been hung from ceiling points.  Many film stages have several very strong I-beams running the length of the room.  These have hand-operated chain hoists attached that can be run along the beam, speeding up rigging.  Most film stages are soundproofed, making them ‘sound stages.’  Most will also have some sort of ventilation system.  All require a power supply for lighting.

Almost all sound stages at the various film studios have been used to make dramas and other shows intended to be shown on TV – either by one of the main broadcasters or by one of the streaming companies.  In a sense, they could therefore be called TV studios but I consider that to be confusing – so they are referred to as sound stages on this website.



Of course, ‘film’ hardly exists any more as an originating medium – most features shot in the UK use digital video cameras – the same cameras that are used to shoot TV dramas.  The lines are thus even more blurred.



People occasionally contact me, pointing out that a particular film studio hasn’t been included here.  My excuse is that I am covering the history of studios that have been used to make television.  The history of cinema has been written about in numerous books.  So, for instance, I haven’t included Denham as, to my knowledge, that extraordinary studio never produced any television, just features.



And yes, I have included studios on this page that are not actually in London but close enough to be associated with the capital.  In fact, the area west of London is now a world centre for film and high-end TV rivalling Hollywood itself.







Film studios listed below in the order they originally

opened or are planned to open:



As well as the major studios listed above, London also has a number of other ‘film and TV’ studios dotted about that are available for hire.  Most of these are relatively small and almost all are a conversion of an industrial building – usually with a smart client room/green room and a few rooms for wardrobe/make-up.  They often have a simple scaffold grid, pre-lit semi permanent green screens or white cycs and sometimes a local stock of lights or even a camera or two for hire.  Their stages provide a very useful facility to people making commercials, pop promos or who need to shoot a simple interview or talking head.  Here are some examples:

(Those in red have closed since first appearing on this list.)

Broadley Studio –   2 stages, 1 of 670sq ft (29 x 24ft) and the other of 415 sq ft (23 x 18ft.)  Studio 1 has a white infinity cove, green screen and TV, sound and lighting kit available.  Studio 2 also has white infinity cove and optional green screen.  There is also a virtual studio with a 4K gallery.

Camberwell Studios – 2 stages of 1,300 sq ft and 400 sq ft. Both stages have pre-lit green screens with cove.

The Camden Studio – 1 pre-lit stage of 1,300 sq ft (39 x 33ft) with L-shaped cyc

Centrestage Studios – 2 purpose built stages of 2,500 sq ft (50 x 50ft) and 1,500 sq ft (50 x 30ft) with permanent white and green cycs.  Constructed after former studios in Euston were redeveloped.

Filmscape Studios  –  a single 2,000 sq ft stage with white cyc at one end.

Halliford Studios  – (opened in 1955 for the shooting of commercials) –  2 stages of 3,600 sq ft (60 x 60ft) and 2,400 (60 x 40ft) sq ft with permanent cycs.  Sadly, these studios closed in July 2018 to make way for a development of 24 houses. The last production was  Tracy Ullman Breaks the News, for BBC1.

Magic Eye Studios – now closed  but used to have 4 or 5 stages up to about 2,500 sq ft.  Perhaps surprisingly, the largest stage was used for an early series of The Weakest Link using an OB truck.

Mount Pleasant Studio a single pre-lit stage of 1,270 sq ft (41 x 31ft)

Silver Road studios  – 4 stages from 920 sq ft – 190 sq ft (an equipped TV production gallery was also available plus SD cameras.) Closed at the end of July 2014.

SLV – 2 stages of 850 sq ft (37 x 23ft) and 280 sq ft (21 x 14ft)

Waterloo Film studios (opened in 1993) – 4 stages – 2,100 sq ft, 1,280 sq ft, 750 sq ft, 200 sq ft.  The company that ran these – Spectrecom Films – now operates the old Cactus TV studios in Kennington. Waterloo Studios closed towards the end of 2014.

Green Rock/TOG Studios  –  (opened in June 2018)  an equipped  TV studio of 600 sq ft in Henry Wood House.





It is also worth noting that due to the current shortage of suitable stages, many TV dramas and even some features are being shot in old deserted factories and leaky warehouses.  These include places like the Peak Freans factory in Bermondsey, where Spooks and Hustle were shot and the old Tate and Lyle building in Greenwich, where The Smoke was filmed.

In recent years, temporary or ‘rapid build’ stages have also been used – for example, the 2019 series of Endeavour was mostly shot on a large temporary stage at Langleybury Farm, near Leavesden Studios.    Filmfloor is the company that supplied that one.  Stage 50 is another company – they supplied the stages at Farnborough, Winnersh and Wycombe but these were in fact built by Triton.  (Stage 50 went into administration in April 2024.)  Acorn Structures built stages at Bovingdon and Meridian Water, and Serious Stages have supplied to Pinewood and Longcross.

These stages can be very useful to fill a much-needed gap in the UK’s resources.  Their designs differ but all of them have sound treatment to the walls and a grid capable of supporting considerable weights.

NB – Film studios are almost always measured in feet, not metres.  They also hardly ever have footage markings on the studio walls.  That is because in the movie world a set is built on a stage in a position that is convenient to the scene crew.  When it is finished, the DoP will look at the set and tell his gaffer where he wants each lamp to be rigged.  This will happen over the following few hours or even days.  In the TV world, the set is designed and a plan is sent to the lighting director before it is erected in the studio.  He or she will then design the lighting on paper or computer for that set, based on the designer’s drawings.  This is called a lighting plot.  Using the LD’s plot, the lights will be hung in specific positions in the studio – either on bars or monopoles (telescopes) or sometimes trusses.  So the lights are rigged BEFORE the set is built.  It is essential therefore that the set is erected within a few centimetres of where it was drawn on the designer’s plan or the lighting will not work.
